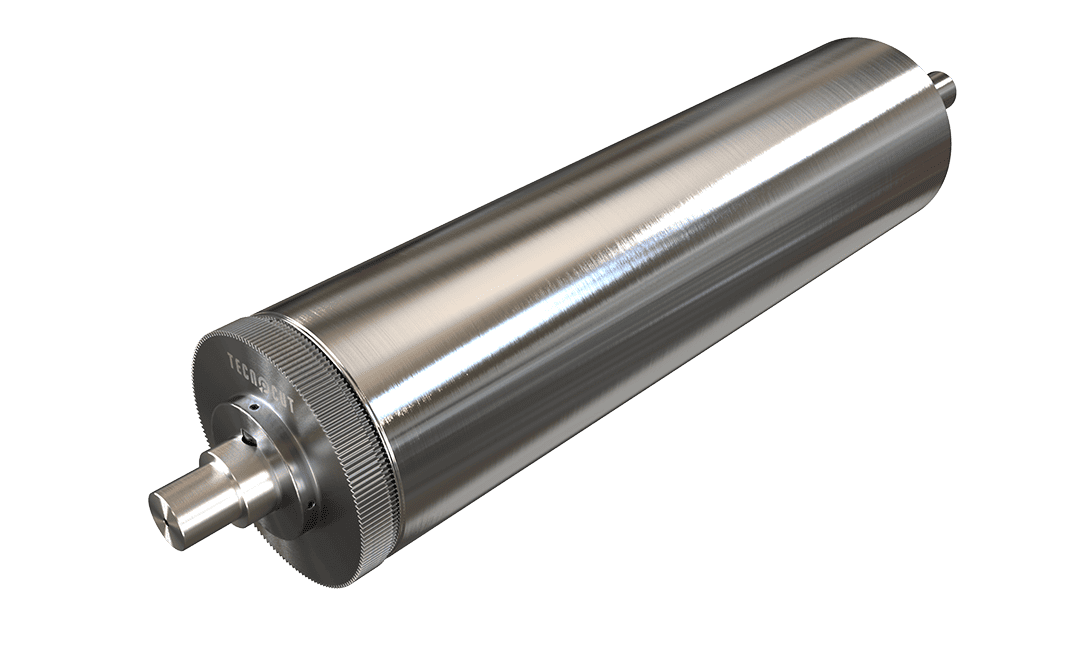

Anvil Roll
Work with absolute precision
The base roll or counter die is a hardened roll (over 62 HRC). Designed with high quality materials that allow to obtain a durable surface to improve performance and service life.
- Available plain or stepped (different heights)
- It is used for a wide range of converting methods.
- Hard chrome plating for best surface quality (finish) and corrosion protection
- Thickness 62+/- 2HRC. Accuracy <3 µm. Cylindricity <3 µm. <3 µm. Cilindricidad <3 µm.
Advantages of our Anvil Roll
Get the best results
Maximum precision
Thanks to high quality materials we can achieve a thickness of 62 +/- 2 HRC, a precision of <3µm and a cylindricity of <3µm. <3µm y una cilindricidad de <3µm
100% adaptable
Anvil rolls are completely custom made according to the specifications of each job and each client.
High quality
Each product undergo meticulous and strict quality controls and each die is tested on the appropriate material.
Higher performance
High technology together with quality control guarantee the constant, efficient and optimal use of anvils rolls.
Achieve maximum precision
Discover the adjustable anvil roll
The E-Diffsystem is designed to control the movement of the base cylinder electronically. It has a micrometric precision (+/- 1µm), so that the gap between the counter die and the magnetic cylinder can be adjusted to the maximum.
- It works replacing the existing anvil roller and it is adjustable to any die cutting unit.
- Allows to work with materials of different thicknesses.
- It makes the adjustments micron by micron (µm)
Want to know more?
Our team is here!
Anvil Roll to optimise your production
It’s already being used in these sectors!
Graphic Arts
Packaging
Food and Beverages
Automotive
Medical & Pharmaceutical
Hygiene
Electronics
